Cavity Wall

Unilin

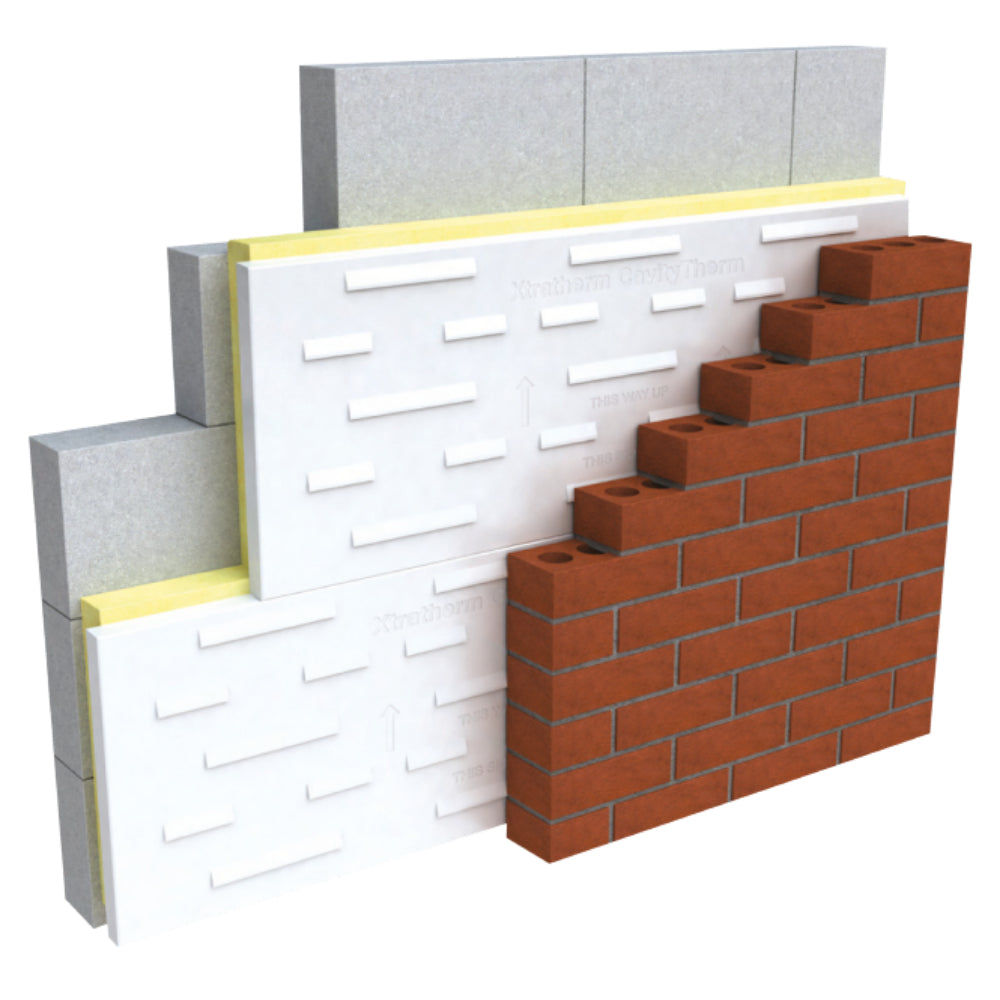

Unilin (Xtratherm) CavityTherm CT/PIR Cavity Wall Boards

Thin-R Plus CavityTherm is an innovative built-in insulation for traditional walls that achieves passive level U-Values as low as 0.12 W/m2K with excellent thermal bridging detailing in cavities less than 150mm wide. It has a unique engineered profile facing that directs any moisture that might penetrate the external wall down the protective facing and back onto the external leaf, giving added protection from wind-driven rain. Certification: ISO9001 - Quality Management Systems ISO14001 - Environmental Management A+ rating on BRE Green Guide BBA Certification No. 10/4786

Unilin

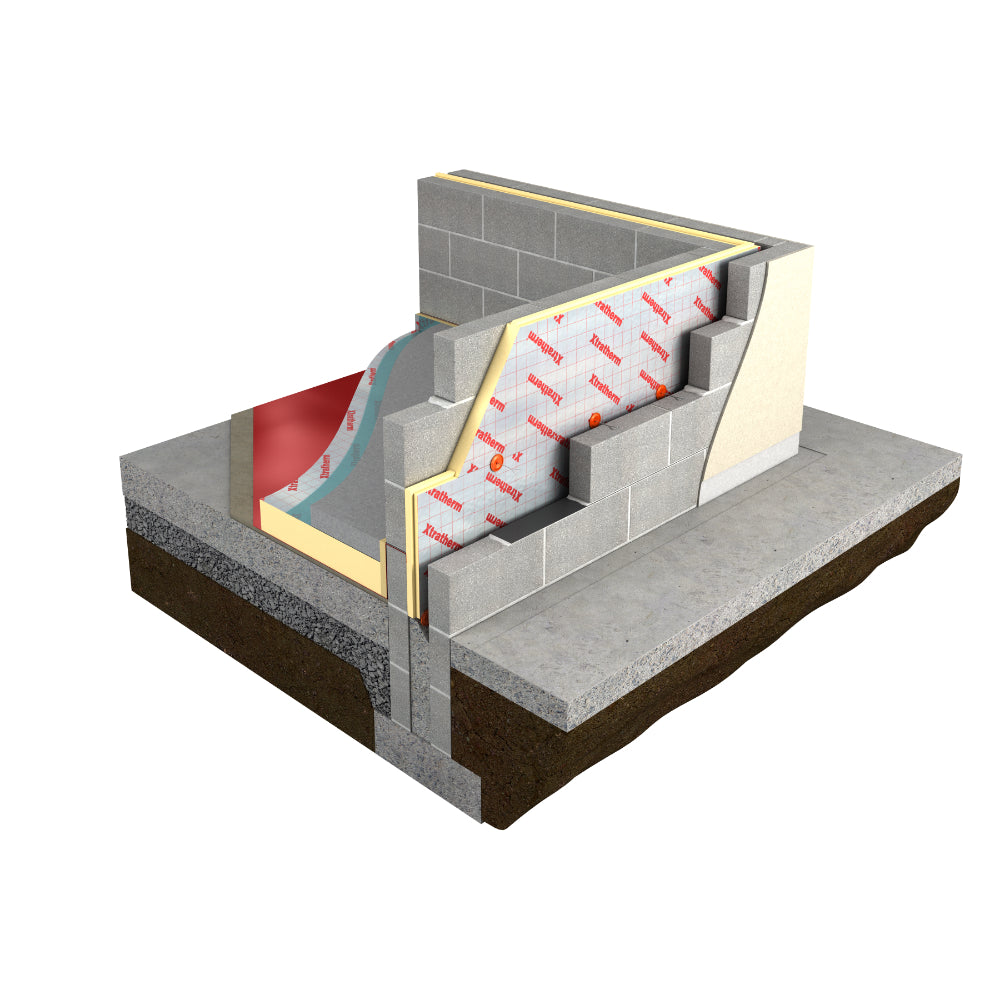

Unilin (Xtratherm) Thin-R XT/CW T&G Partial Fill Cavity Wall Board

Thin-R XT/CW Cavity Wall boards have engineered tongue and groove joints and preformed corners allowing for insulation continuity and minimisation of thermal bridging. For use in traditional masonry walls that build to the highest thermal standards whilst maintaining a residual cavity, offering protection from wind driven rain. Certification: ISO9001 - Quality Management Systems ISO14001 - Environmental Management A+ rating on BRE Green Guide BBA Certification No. 08/4613 (Issued 5 August 2011)

Kingspan

KINGSPAN Kooltherm K108 Cavity Board

Kingspan Kooltherm K108 Cavity Board is a premium performance insulation with a fibre-free rigid thermoset phenolic core.As part of the Kooltherm 100 range, it provides a level of performance that is unrivalled in the world of rigid thermoset insulation materials with a thermal conductivity of just 0.018 W/mK across all thicknesses. Certifications: ISO 9001: 2015 (Quality Management Systems. Requirements), ISO 14001: 2015 (Environmental Management Systems. Requirements), BS OHSAS 18001: 2007 (Occupational Health and Safety Management Systems. Requirements) BS EN ISO 50001: 2011 (Energy Management Systems. Requirements with guidance for use), The Harmonised Standard BS EN 13166: 2012 + A1: 2015 (Thermal insulation products for buildings. Factory made phenolic foam (PF) products. Specification).

Rockwool

Rockwool Full Fill Cavity Batts

ROCKWOOL Cavity Batts provide thermal protection for external masonry walls, and thermal and sound protection within masonry party walls, between dwellings. The batts are quick and easy to accurately cut, and provide a great fit; reducing installation time, avoiding gaps and cold spots, and maximising long term performance. ROCKWOOL Cavity Batts are also used in masonry party walls to prevent the thermal bypass effect, and so achieve a zero U-value, while also providing the required sound protection and fire resistance. Certification: ISO14001 - Environmental Management.EN 13162 - Manufactured in accordance with.A+ rating on BRE Green Guide

Unilin

70mm Unilin Thin-R XT/CW T&G Partial Fill Cavity Wall (CORNERS) - per board

Thin-R XT/CW Cavity Wall Corner boards have engineered tongue and groove joints and preformed corners allowing for insulation continuity and minimisation of thermal bridging. For use in traditional masonry walls that build to the highest thermal standards whilst maintaining a residual cavity, offering protection from wind driven rain. Certification: ISO9001 - Quality Management Systems ISO14001 - Environmental Management A+ rating on BRE Green Guide BBA Certification No. 08/4613 (Issued 5 August 2011)

Knauf Insulation

Knauf DriTherm Cavity Slab 32

For thermal insulation in residential and non-residential masonry cavity external walls, Earthwool DriTherm 32 Ultimate Cavity Slabs have a special additive to make the product water repellent. They are 455mm wide to suit standard vertical wall tie spacings allowing a closed joint with adjacent slabs. Certification: A+ rating on BRE Green GuideBBA - 95/3212ISO9001 - Quality Management SystemsISO14001 - Environmental ManagementBS OHSAS18001 - Occupational Health & Safety Management SystemsISO50001 - Energy Management SystemsEN 13162 - Manufactured in accordance with

Knauf Insulation

Knauf DriTherm Cavity Slab 37

For thermal insulation in residential and non-residential masonry cavity external walls, Earthwool DriTherm Cavity Slabs have a special additive to make the product water repellent. They are 455mm wide to suit standard vertical wall tie spacings allowing a closed joint with adjacent slabs. Certification: A+ rating on BRE Green Guide BBA - 95/3212 ISO9001 - Quality Management Systems ISO14001 - Environmental Management BS OHSAS18001 - Occupational Health & Safety Management Systems ISO50001 - Energy Management Systems EN 13162 - Manufactured in accordance with

Knauf Insulation

100mm Knauf DriTherm Cavity Slab 34

Earthwool DriTherm 34 Ultimate Cavity Slabs have a special additive to make the product water-repellent for thermal insulation in residential and non-residential masonry cavity external walls. They are 455mm wide to suit standard vertical wall tie spacings allowing a closed joint with adjacent slabs. Certification: A+ rating on BRE Green Guide BBA - 95/3212 ISO9001 - Quality Management Systems ISO14001 - Environmental Management BS OHSAS18001 - Occupational Health & Safety Management Systems ISO50001 - Energy Management Systems EN 13162 - Manufactured in accordance with

Knauf Insulation

140mm Knauf FrameTherm® Slab 32 (Pack of 4)

FrameTherm Slabs 32 is a specialist product for timber frame construction. Earthwool FrameTherm slabs are used for ‘friction fitting’ between timber studs and rafters. Slabs are manufactured with a width of 570mm to suit studs spaced at 600mm centres. FrameTherm Slabs are odourless, rot proof, non-hygroscopic, do not sustain vermin and will not encourage the growth of fungi, mould or bacteria. Certification: ISO9001 - Quality Management SystemsISO14001 - Environmental ManagementBS OHSAS18001 - Occupational Health & Safety Management SystemsISO50001 - Energy Management SystemsEN 13162 - Manufactured in accordance withA+ rating on BRE Green Guide
