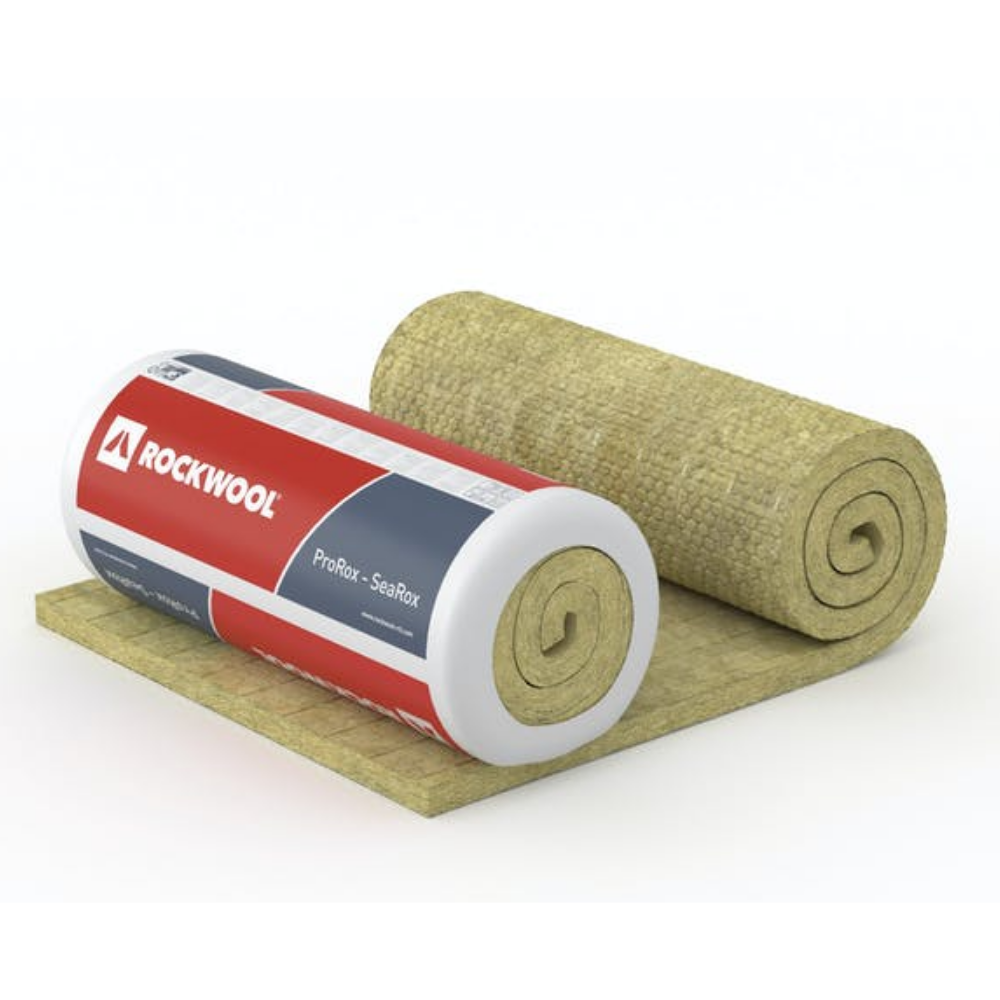

Rockwool ProRox WM 971 UK WRG Wire Reinforced Mat
Rockwool ProRox WM 971 UK WRG Wire Reinforced Mat
chevron_left
chevron_right

50mm Rockwool ProRox WM 971 UK WRG Wire Reinforced Mat (2x500mm x 3.1m)


ProRox WM 971 UK WRG (water repellent) is a lightly bonded heavy-duty stone wool insulation mat stitched on galvanized wired mesh with galvanized wire. Supplied with a water repellent coating that meets the BP Engineering Standard 172. Stainless steel mesh and binding wire (SW) and/or reinforced aluminium foil (ALU) facing is also available in this range.

Thermal Conductivity:

 T (℃) 50 100 150 200 250 300 350 400 500 600 680
λ (W/mK) 0.040 0.045 0.053 0.061 0.070 0.081 0.093 0.105 0.132 0.167 0.197

Read more Read less
Quantity

Key points
  • Great for industrial applications
  • Where high-temperature resistance is demanded such as steam generators and reactors.
  • Water Repellent Grade

Specification

Thickness: 50mm
Width: 2x500mm
Length: 3.1m
Pack Coverage: 3.1m²
Nominal Density: 128 kg/m³
Water Absorption: < 1 kg/m²
Maximum Service Temperature: 680 ℃
Reaction to Fire: EuroclassA1 - EN 13501-1

Application

The wired mat is especially suitable for the thermal insulation of industrial applications when high-temperature resistance is demanded, such as steam generators and reactors. For WRG product, please add 7.00% surcharge.

Conformity:

ProRox WM 970 UK conforms to EN 14303:2009+A1:2013. Thermal insulation products for building equipment and industrial installations. Factory made mineral wool products (MW). Specification and can be used to satisfy BS 5422: “Method for specifying thermal insulating materials for pipes, tanks, vessels, ductwork and equipment operating within the temperature range -40°C to +700°C“.
